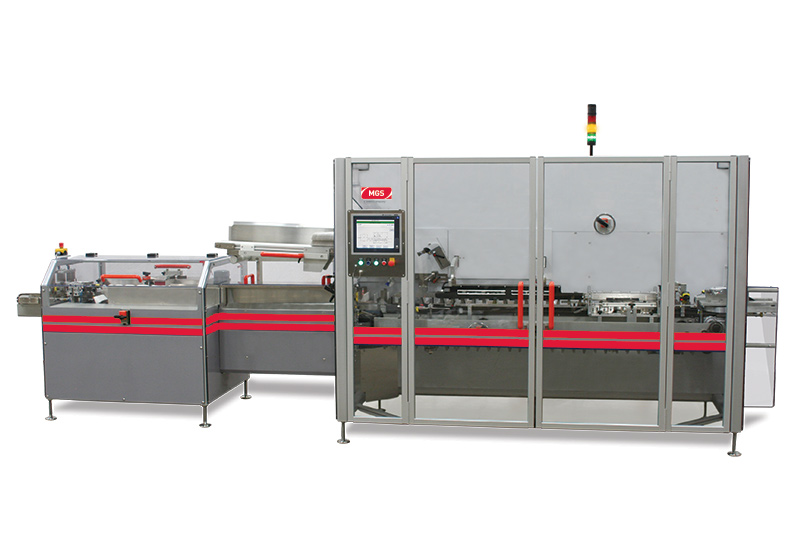

Horizontal continuous motion cartoner (200 cpm)

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Food, Electronics, Personal Care, Home Care, Pharma & Healthcare, Industrial Goods, Pet Care, Tea & Coffee, Tobacco
  • SEGMENT: Candies & Gums, Salt, Sugar & Spices, Snacks, Digital Media Carriers, Cosmetics, Deodorants, Fragrances, Men's Shaving, Other Home Care, Liquid Soaps, Toothpaste, Soap Bars, Printing Cartridges, Optical, Construction Components, Other Industrial Goods, Other Oral Care, Skin & Sun Care, Other Personal Care, Other Pet Care, Laboratories, Medical Devices, OTC, Other Pharma & Healthcare, Other Prescription Applications, Injectables, Ophthalmic, Coffee, Other Tea & Coffee, Tea, Snus, Hair Care, Vapour

Detailed Info

Machine depth (mm)2298
Machine height (mm)1981
Machine length (mm)3429
Machine weight (kg)2445
Other technical features
Insertion modeend load
Operating modeContinuous
Product changeoverN/A
Size changeover12-30 minutes (3-D Changeover)
More Information
Other infoSpeeds up to 200 cartons per minute. Small footprint requires less floor space. Touch screen user interface provides ease of operation and graphical machine feedback. Direct drive servo-based design reduces maintenance, provides greater accuracy at high speeds and simplifies changeover. Pre-designed infeed solutions provides flexibility in handling tubes, bottles and blisters as well as literature insertion either pre-folded or wraparound. Powered carton magazine provides ergonomic material loading. Standard carton pre-break eliminates carton setup failures. Captured main flight chains provide increased chain life and square cartons. Quick change tooling reduces changeover time and ensures the quality of the first product out. Robust design allows 24/7 operation. Construction fully adheres to ANSI/PMMI B1.55.1 safety and cGMP guidelines. Available Pharmaceutical Validation Assistance Documentation reduces commissioning efforts.
Packaging range
Max pack height (mm)178
Min pack height (mm)76
Max pack length (mm)100
Min pack length (mm)19
Max pack width (mm)114
Min pack width (mm)19
Packaging features
Packaging closingtuck/glue
Packaging materialPaperboard
Packaging orientationhorizontal
Packaging Typeprefolded carton
Packaging typecarton box
Attached Files
CT200 Spec SheetDOWNLOAD
